75-inch Cable Trench System

75-inch Cable Trench System

SKU CT-75-2P Category

The CT-75-2P is a 75-inch system including (5) 15-inch back boxes, (1) pass through end cap, (1) end cap with conduit and electrical knockout, (4) solid screw covers, and (1) brush cover. This system allows you to build a custom cable trench system between 15 and 75 inches tall and is completely modular in that it allows you to build it custom to your job specifications. Download the PDF for more information. All parts sold separately in 5 packs as well for more custom build applications.

This is an all in one Cable Trench System Kit that includes all of the below items in one box.  The system is modular and can be built in incremental, 15-inch sections to any size.

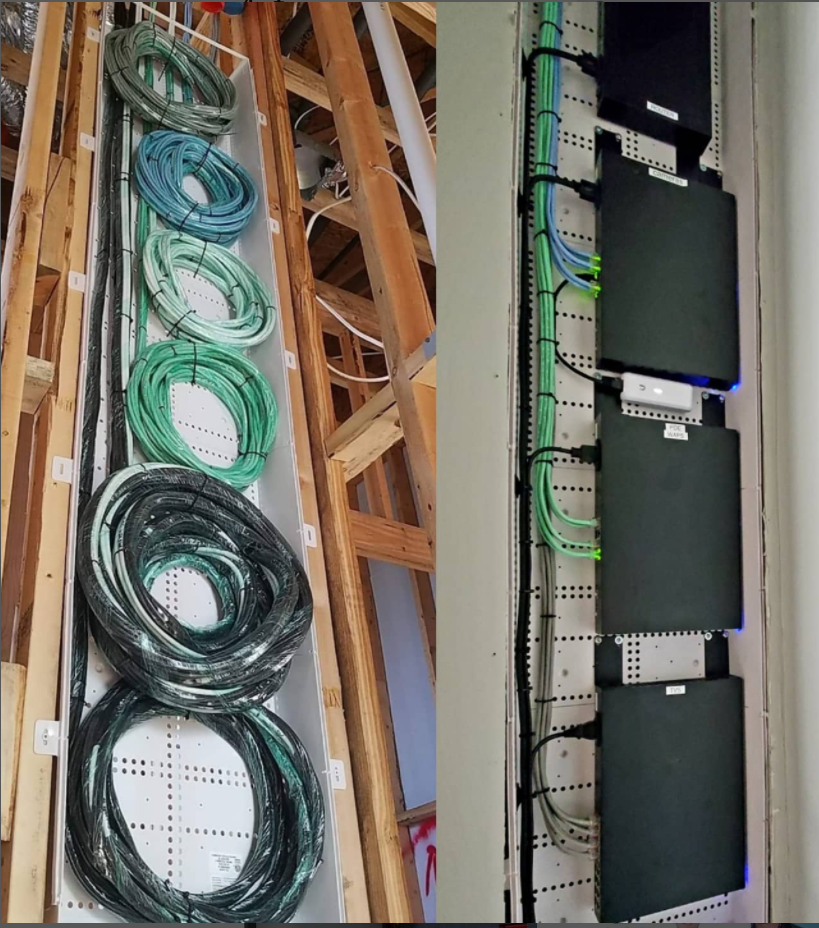

**Great product for rack rooms or audio head end rooms, where you want to conceal cables in the wall.  If you need different service loop exit heights coming out from the wall to the rack or equipment, you can fully customize these parts and pieces and build to whatever your needs are**

  • (5) CT-5-BB (unfinished back boxes)
  • (1) CT-10-CC (2pk – cover caps for solid covers and brush cover)
  • (1) CT-5-END (2pk – open end cap and knockout cap)
  • (4) CT-5-SC (solid screw on covers)
  • (1) CT-5-TC-BR (exit point/brush cover)

Additional information

Weight 18.30 lbs

Aliases:

10660559015589,20660559015586,660559015582,CT-75-2P

Alternates:

None
